SV-30022 Harvey Custom Home Plan



About this custom home plan:

• 4430 Heated Square Feet

• 3 Bedrooms

• 2.1 Bathrooms

• Single Story

• Open concept

• Foyer

• Basement

• Walk-in Pantry

• Laundry Room

• Front and Rear Porch

• 1224 Sq Ft Garage

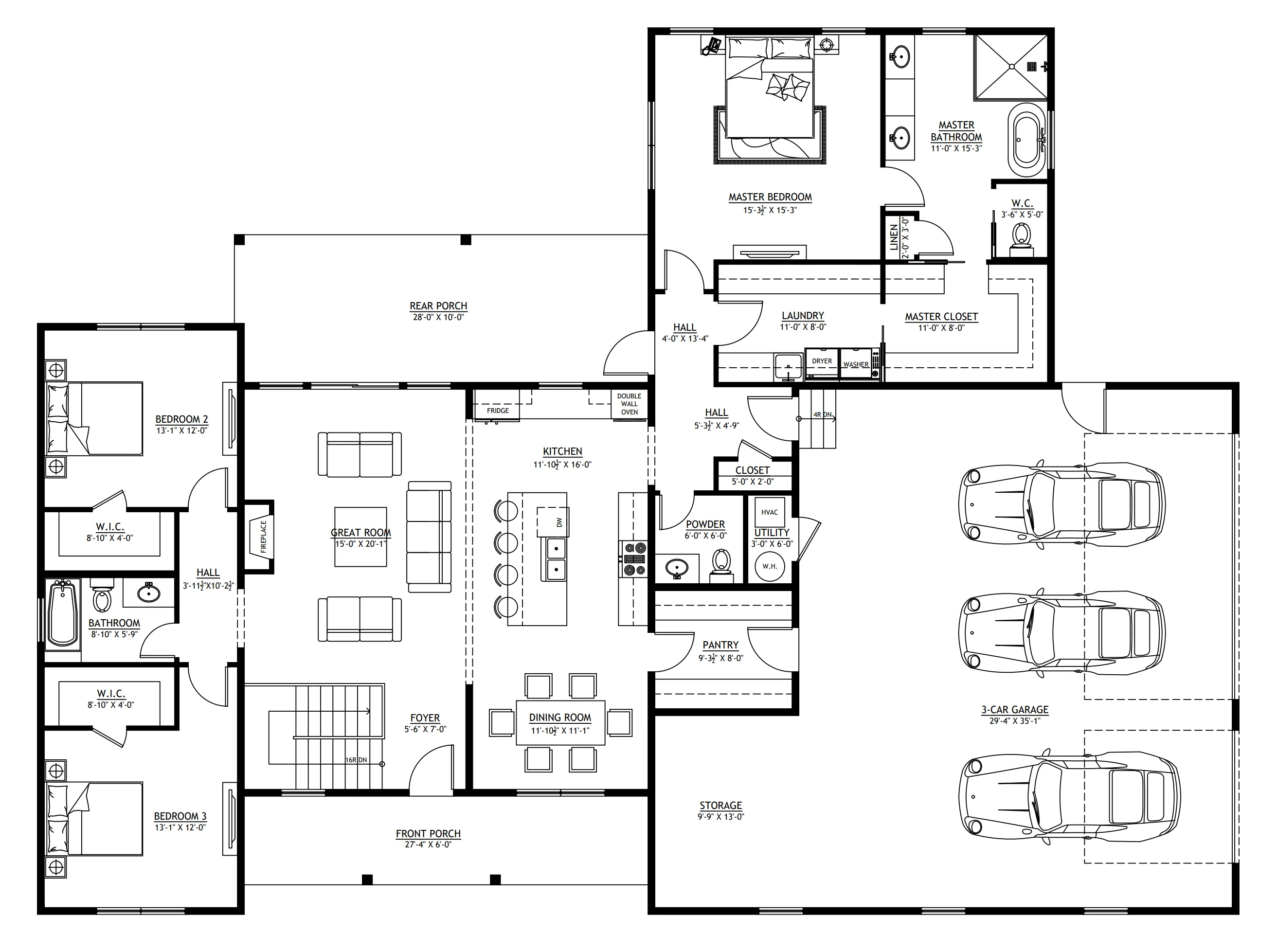

• The main entry foyer guides you straight into a fluid central pavilion uniting the great room, dining space, and kitchen and anchored by a cozy focal fireplace.

• Designed around a large central island with casual seating for four, the kitchen features extensive counter space, and an exceptionally deep walk-in pantry.

• Tucked into the top-right wing, the master bedroom forms a private retreat with spa-like master bathroom, and direct connection to a large walk-in closet.

• Two secondary bedrooms each feature their own walk-in closets and share a full hallway bathroom with a tub/shower combo.

• Coming in from the 3-car garage brings you into a functional service zone with a powder room, coat closet, and laundry room with direct access to the master closet.

• The attached garage comfortably shelters three vehicles while offering additional dedicated storage space.

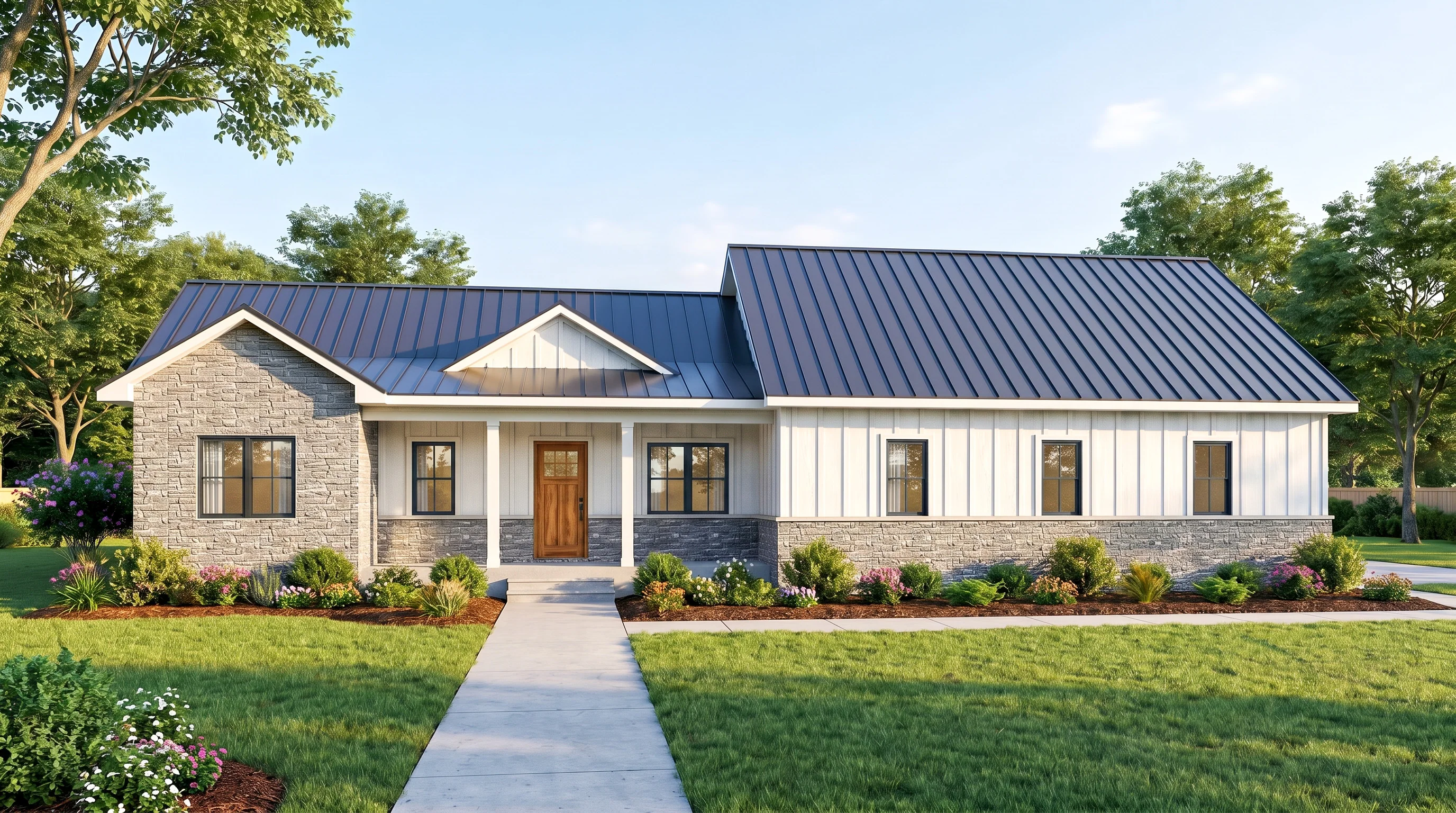

• Outdoor living is framed by a welcoming front porch and a covered rear porch right off the kitchen.

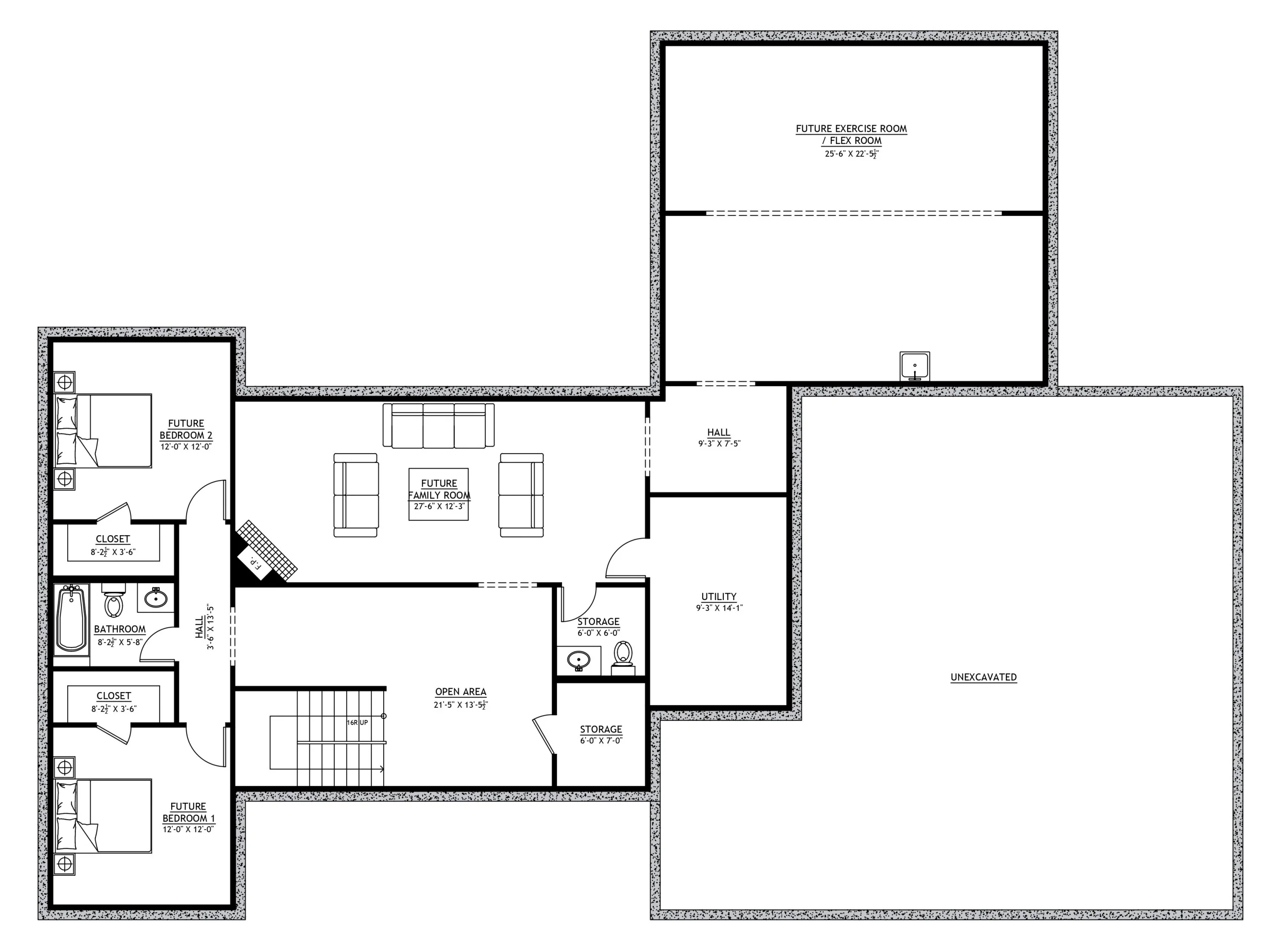

• The staircase leads down to a fully planned basement level featuring a large future family room with its own fireplace, two future bedrooms with dedicated closets and a shared full bath, an open rec area, extra storage rooms, and a massive future exercise/flex room setup under the master wing.







What's included in SV-30022:

Cover Page
Main Floor Plan
Future Basement Plan
Roof Plan
Front And Rear Elevation
Right And Left Elevation
Interior Elevations
Electrical Plan
Plumbing Plan
HVAC Plan
Roof Framing Plan
Wall Framing Plan
Ceiling Joist Plan
Foundation Plan
Wall Section
Post Detail
Lally Column Detail
Section A-A And Section B-B
Typical Framing Details-1
Typical Framing Details-2
Typical Framing Details-3



For more barndominium floor plans, check out our complete collection of 3-bedroom barndominium floor plans.



Need to make changes? Submit a modification request using the button that says Modify This Plan. We will get you a free price quote within 72 hours.
